Product use

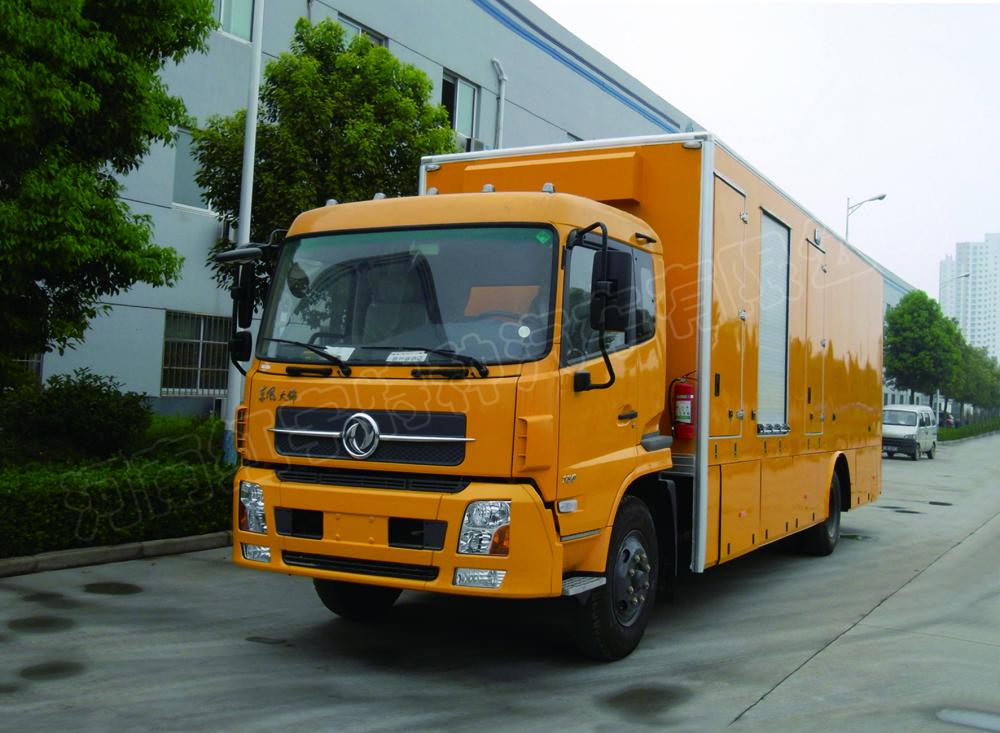

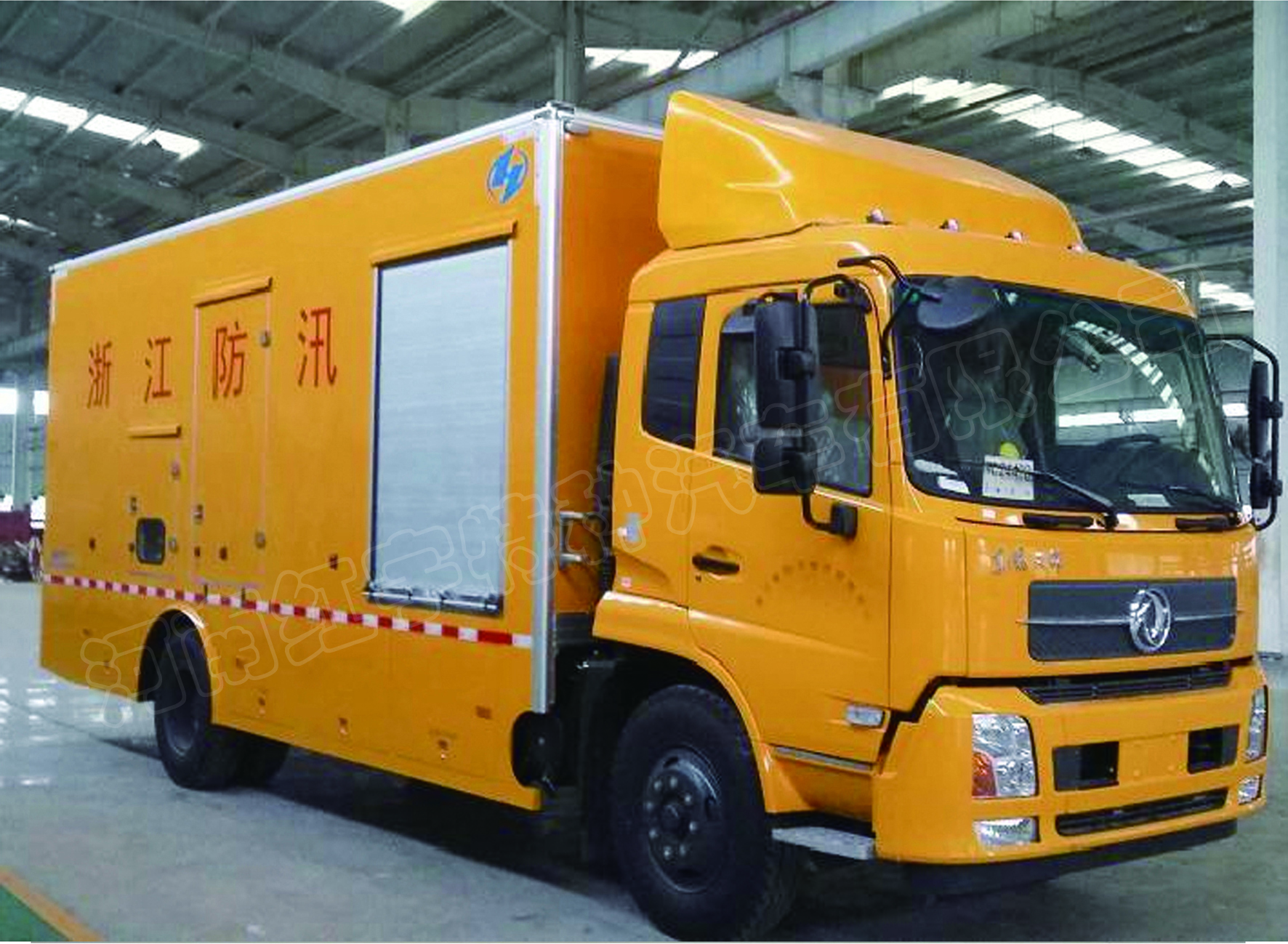

Red emergency power car series products are my company independent development of silent type high power emergency mobile power station, the product is suitable for the urban electric power, communication, municipal, water, gas, heat, flood control and emergency power supply, military field equipment such as power supply, the airport power supply, large power and large industrial and mining enterprises field operations emergency rescue mobile power supply, etc. It is characterized by quick emergency response, strong maneuverability, quick use, convenient operation, stable and reliable, complete facilities, environmental protection, humanized design, smooth driving and beautiful process appearance, etc., which are well received by users.
Product features
1. Excellent heat insulation and cold start ability of power car compartment;
2. Light weight, high strength and corrosion resistance;
3. Strong environmental adaptability, adapt to high and low temperature, bumpy road, humidity, high altitude and other environments;
4, low noise (1 meter at the average 75dB), using composite noise reduction, special structure muffler muffler;
5, easy to operate, independent control, fast and reliable connection, cable fast;
6, mature vehicles, with the ministry of industry and information technology announcement directory, irs tax free directory, the ministry of environmental protection announcement and "CCC" certificate, can be yellow card on the road.
Technical parameters
| Vehicle type | HYZ5121XDY | Distribution control system | IP44 class protection | | The total quality | 12495/11995Kg | Cable winch | Electric, positive and negative, with 50 meters of fire retardant copper cable | | Overall dimensions | 8300/8795/
9000×2442×3450/3560/3660mm | Hydraulic leg | Double leg linkage/single leg independent control | | Emission standards | The V emissions | Interior lighting installation | Ceiling lights, emergency lights, etc | | Chassis models | DFL1120B21 | Fire safety installation | 4Kg dry powder fire extinguisher | Engine type | Cummins ISD180 50 engine | Safety grounding device | 10 m long 25mm2 special ground wire and 0.7m ground anchor assembly | | Work rate | 132KW | Astern monitoring device | Color LCD monitor, radar probe | | Fuel type | diesel | Other accessories | Spare parts, chassis and onboard tools | | Generating set | Optional 200-400kw diesel power generator set, with 6-8 hours base fuel tank, water jacket heater, starting battery, etc.; | options |
| | Vehicle-mounted lifting lighting | Provide large area lighting for night work, power: 2*1000W, working height 4.5m, electric control, remote control, lifting and rotating, effective lighting distance 80m; | | Mute compartments body | Environment - friendly, energy - saving and noise - proof carriage | Fire safety installation | Aerosol intelligent fire extinguishing system | | Air inlet and dryness system | Symmetrical, bidirectional, multistage and multichip sound absorption device | Safety lightning protection device | First stage arrester | | Ventilation and dryness system | Multi - stage multi - piece radial exhaust duct | Automatic switching device | ATS automatic switch cabinet, with the municipal power supply automatic switch, automatic start unit function. | | Smoke exhaust and noise elimination system | Multistage compound muffler |
|
|
|
|
