Hongyuemergencyvehicleseriesisaspecialvehicledevelopedbyhenanhongyuspecialvehicleco.,ltd.
Product use

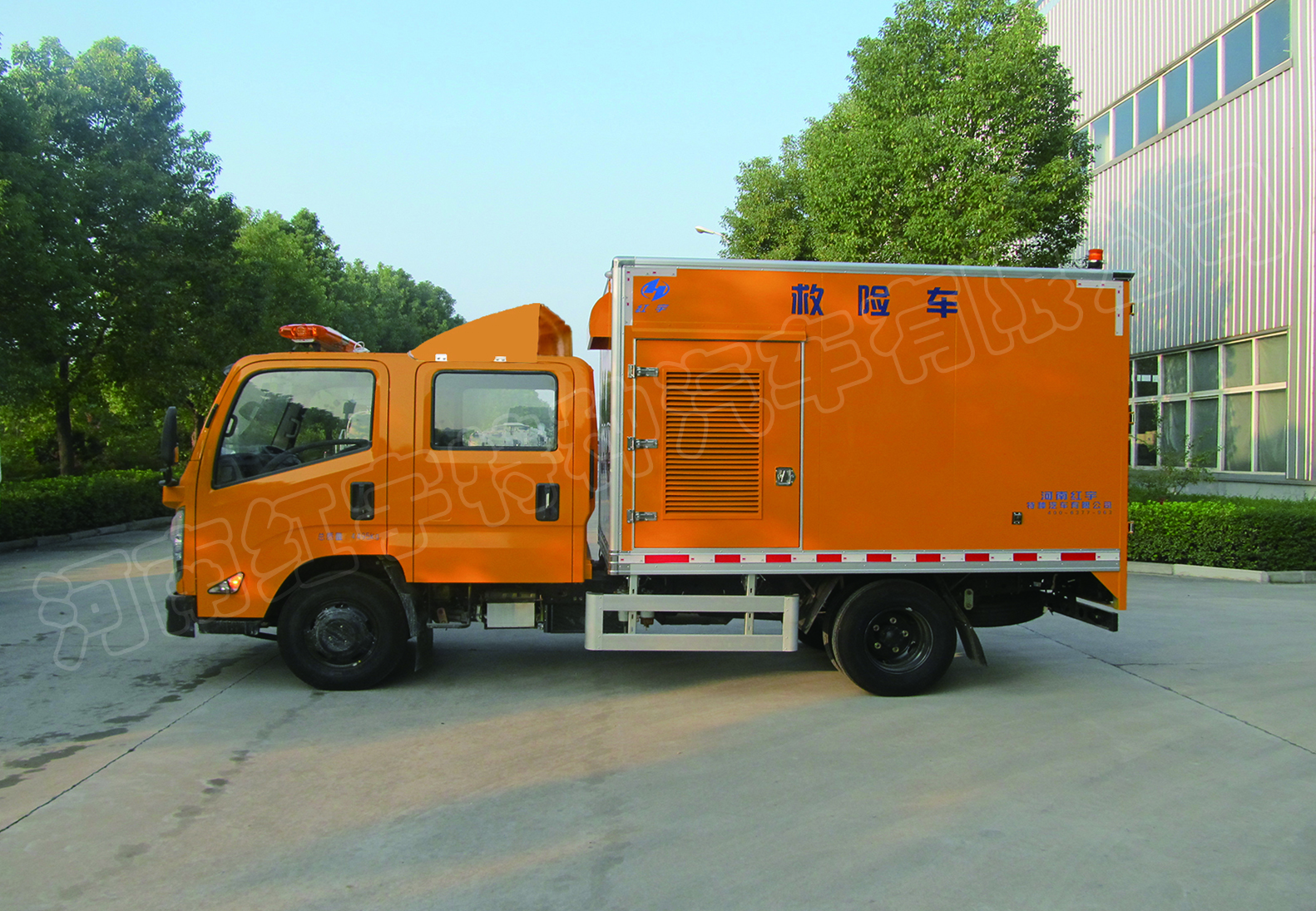

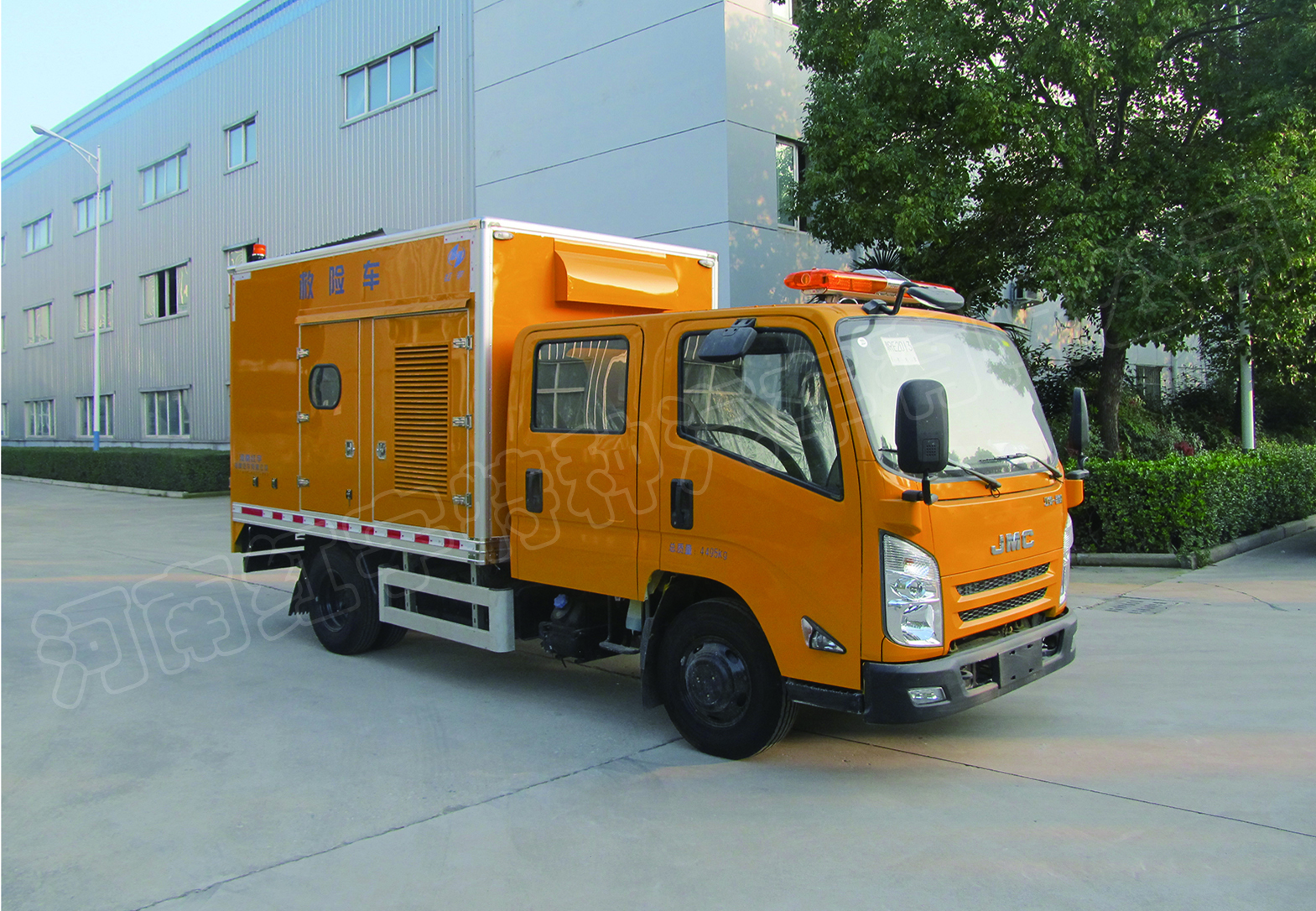

Hongyu emergency vehicle series is a special vehicle developed by henan hongyu special vehicle co., ltd. for the pipe network and road surface quick rescue and repair operations of water supply and drainage, municipal administration, heat, gas, electric power, airport, highway and other industries. In case of emergency, it can reach the site quickly, and most emergency repair operations, such as cutting, dismantling, drainage, pipe welding, etc. can be realized by using vehicle-mounted power supply and vehicle-mounted tools, which greatly improves the emergency response capacity and the efficiency of emergency repair. The car is mainly composed of jiangling chassis, muffler carriage, generator set, electric control system, cable, hydraulic tools, truck crane, car lift lighting, alarm lights and sirens, reversing monitoring, cleaning machine, telescopic ladder, tool cabinet, etc. It is a mature type of vehicle, with the ministry of industry and information technology announcement catalogue, irs tax exemption catalogue, ministry of environmental protection announcement and "CCC" certificate, can be blue card road.
Technical parameters
| Vehicle type | HYZ5041XXH | Mobile distribution box | 30A portable, double circuit zero potential |
| The total quality | 4495Kg | Inside the tool cabinet | Stainless steel tool cabinet (storage of small emergency repair tools and work clothes, etc.) |
| Overall dimensions | 5995×2070×2800mm | Chassis tool box | Underhanging chassis |
| Emission standards | The V emissions | Extension ladder | Aluminium alloy two section telescopic working ladder /4.0 m |
| Automobile chassis | JMC JX1043TSG25 class ii vehicle chassis, double-row seat, JMC JX4D24A5H engine, power 90KW, diesel, national V emission, including air conditioning, diversion cover; | Astern monitoring device | Color LCD monitor, 7 - inch display |
| Safety warning device | A long line of flashing (yellow/yellow) lights and sirens | ||
| Daily unit fuel tank | It can meet the needs of generator set for 6-8 hours | ||
| Mute compartments body | Two-compartment silent type, cabinet with lifting, tool cabinet, including noise reduction system, ventilation system, heat insulation system, anti-skid floor; | Interior lighting | Direct current lamps for each warehouse |
| Safety grounding device | Special ground wire and ground anchor assembly | ||
| Generating set | Optional 30KW diesel power generator set, with 6-8 hours base tank, water jacket heater, starting battery, etc. | Fire safety installation | 2kg dry powder fire extinguisher |
Car lift Lighting system | Provide large area lighting for night work, power: 2*1000W, working height 4.5m, electric control, remote control, lifting and rotating, effective lighting distance 80m; | Special tools | |
| Electric welding machine | ZX7 -- 400 IGBT, 400A, with 15m input cable, output power cord, welding pliers, mask and gloves; | ||
| Hydraulic power station (internal combustion type) | Optional installation of imported or domestic internal combustion hydraulic power station, power source of hydraulic equipment, including 15m hydraulic pipe; | ||
| Control system | IP44、380V/220V | Hydraulic power station (electric drive type) | Electric drive type hydraulic power station, power source of hydraulic equipment, including 15m hydraulic pipe; |
| Winch cable | Electric automatic outgoing; Equipped with 3 * 16mm2+1 flame retardant copper cable 30m; Cable connector adopts waterproof quick connector; | Hydraulic crushing pick | Hydraulic crushing pick, anti-vibration pick body, including one pick with tip/flat pick, used for crushing asphalt and cement concrete; |
| The load car crane | Arm length 1.2 m, or rotated 180 °, the maximum lifting 400 kg, with two mechanical leg; | ||
| High pressure cleaning machine | Electric, 10L/min (including 80L stainless steel water tank) | Hydraulic slurry pump | Hydraulic slurry pump, diameter 4in, flow rate 180m3/h, including 20 meters of water; |
| Fixed distribution box | Six circuit output distribution box, equipped with ac 380V/220V output interface 3 groups each (stainless steel); | Hydraulic exhaust fan | Hydraulic exhaust fan, used for air supply, heat and gas exhaust, including 15m air supply pipe. |
