Hongyuemergencyvehicleseriesisaspecialvehicledevelopedbyhenanhongyuspecialvehicleco.,ltd.

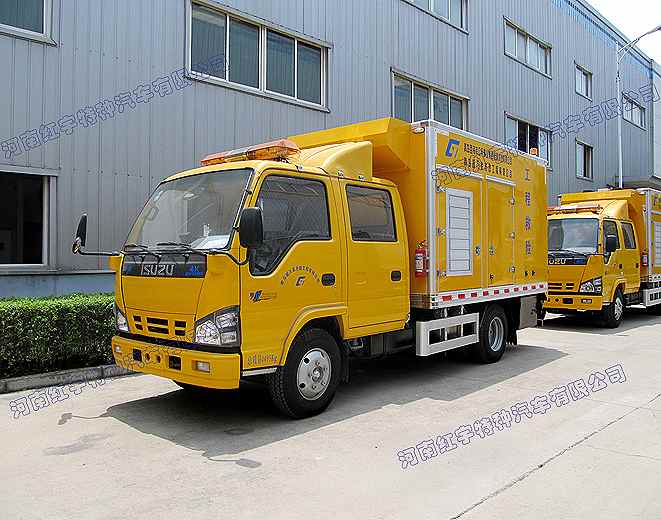

Hongyu emergency vehicle series is a special vehicle developed by henan hongyu special vehicle co., ltd. for the pipe network and road surface quick rescue and repair operations of water supply and drainage, municipal administration, heat, gas, electric power, airport, highway and other industries. In case of emergency, it can reach the site quickly, and most emergency repair operations, such as cutting, dismantling, drainage, pipe welding, etc. can be realized by using vehicle-mounted power supply and vehicle-mounted tools, which greatly improves the emergency response capacity and the efficiency of emergency repair. The car is mainly composed of qingling chassis, silent carriage, generator set, electric control system, special tools and so on. It is a mature type of vehicle, with the ministry of industry and information technology announcement catalogue, the irs tax exemption atlas, the ministry of environmental protection information disclosure notice and "CCC" certificate, can be blue card on the road.
Technical reference number
| Vehicle type | HYZ5043XXH | Mobile distribution box | 30A portable, double circuit zero potential |
| The total quality | 4495Kg | Inside the tool cabinet | Stainless steel tool cabinet (storage of small emergency repair tools and work clothes, etc.) |
| Overall dimensions | 5995×2000×2820mm | Chassis tool box | Underhanging chassis |
| Emission standards | The V emissions | Extension ladder | Aluminium alloy two section telescopic working ladder /4.0 m |
| Automobile chassis | QL1040A5HWY type ii vehicle chassis, double row seat, 4KH1CN5HS engine, power 96KW, diesel, national V emission, including air conditioning, diversion cover; | Astern monitoring device | Color LCD monitor, 7 - inch display |
| Mute compartments body | Two-compartment silent cabinet with lifting cabinet and tool cabinet, including desiccation system, ventilation system, heat insulation system and anti-skid ground plate; | Safety warning device | A long line of flashing (yellow/yellow) lights and sirens |
| Generating set | It can be equipped with generator sets of different powers and manufacturers, with 6-8 hours base oil tank, water jacket heater, starting battery, etc. | Daily unit fuel tank | It can meet the needs of generator set for 6-8 hours |
Car lift Lighting system | Provide large area lighting for night work, power: 2*1000W, working height 4.5m, electric control, remote control, lifting and rotating, effective lighting distance 80m; | Interior lighting | Direct current lamps for each warehouse |
| Control system | IP44 | Safety grounding device | Special ground wire and ground anchor assembly |
| Winch cable | Electric automatic outgoing; Equipped with 3 * 16mm2+1 flame retardant copper cable 30m; Cable connector adopts waterproof quick connector; | Fire safety installation | 2kg dry powder fire extinguisher |
| The load car crane | Arm length 1.2 m, or rotated 180 °, the maximum lifting 400 kg, with two mechanical leg; | Special tools | |
| High pressure cleaning machine | Electric, 10L/min (including 80L stainless steel water tank) | Electric welding machine | ZX7-400 IGBT, 400A, output power cord And welding pliers, masks, gloves; |
| Fixed distribution box | Six circuit output distribution box, equipped with ac 380V/220V output interface 3 groups each (stainless steel) | Hydraulic power station (internal combustion) | Optional installation of imported or domestic internal combustion hydraulic power station, power source of hydraulic equipment, including 15m hydraulic pipe; |
| Hydraulic exhaust fan | Hydraulic exhaust fan, used for air supply, heat and gas exhaust, including 15m air supply pipe. | Hydraulic power station (electric drive type) | Electric drive type hydraulic power station, power source of hydraulic equipment, including 15m hydraulic pipe; |
| Hydraulic crushing pick | Hydraulic crushing pick, anti-vibration pick body, including one pick with tip/flat pick, used for crushing asphalt and cement concrete; | Hydraulic slurry pump | Hydraulic slurry pump, diameter 4in, flow rate 180m3/h, including 20 meters of water; |
Note: optional tools can be added or subtracted according to your actual needs; The interior tools can be customized according to the actual needs of users.
