Hongyuemergencydrainagevehicleseriesisaspecialvehicledevelopedbyhenanhongyuspecialvehicleco.,ltd.
Product use

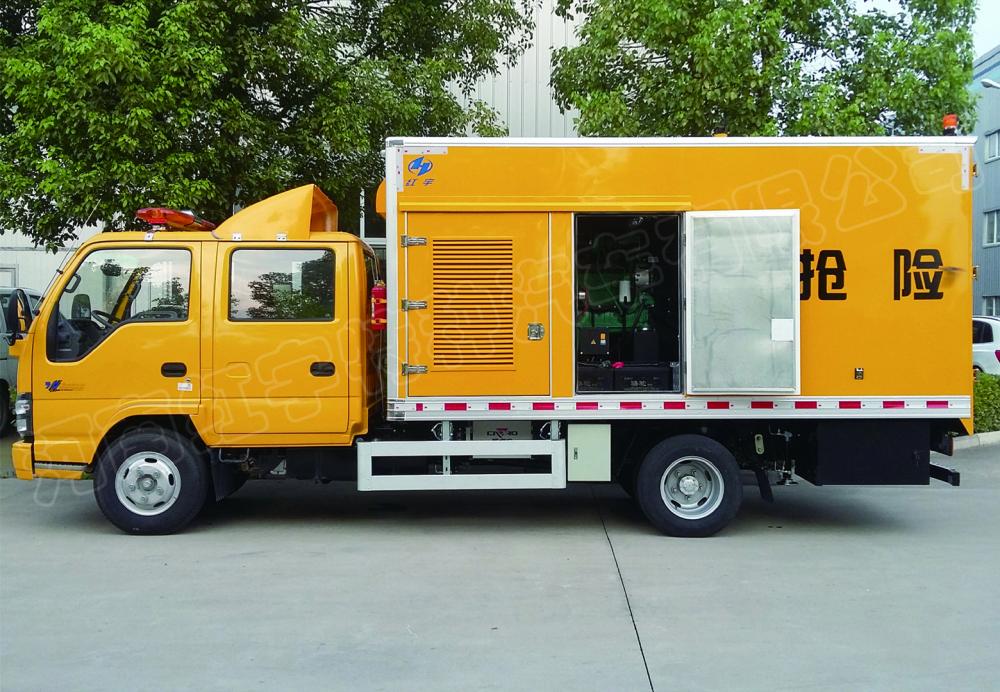

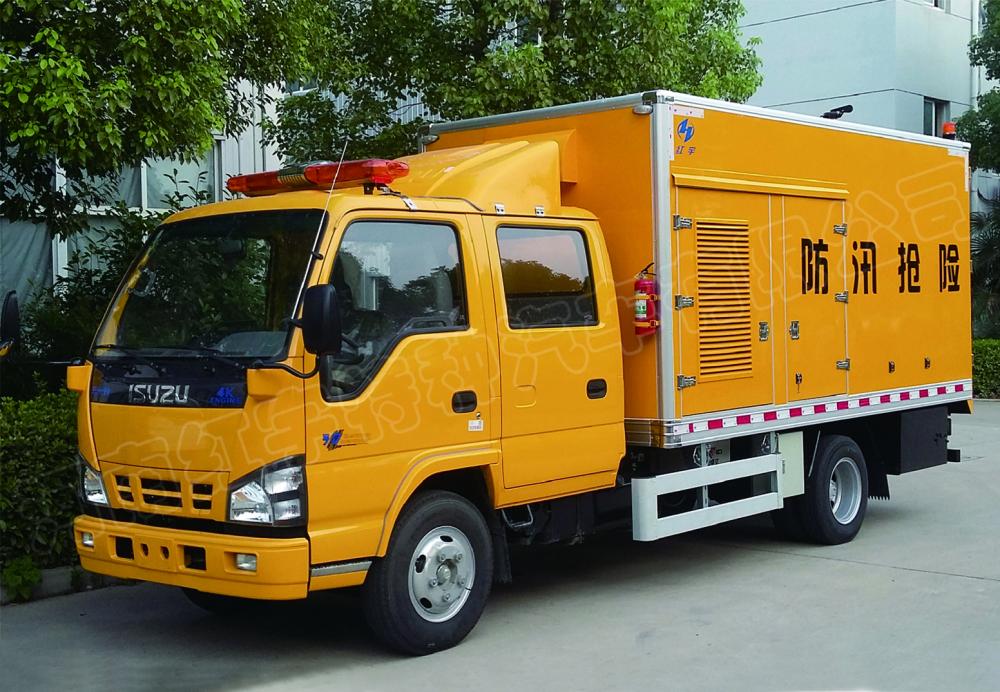

Hongyu emergency drainage vehicle series is a special vehicle developed by henan hongyu special vehicle co., ltd. for drainage operations in urban flood control, municipal drainage, lake drainage and other industries. In case of emergency, it can quickly arrive at the site. By using the on-board power supply and the on-board water pump (dump pump, submersible pump, etc.), it can realize the drainage and drainage of large flow (which can be combined to reach 600-1600 flow), greatly improving the emergency response capacity and working efficiency. The car is mainly composed of class ii automobile chassis, muffler carriage, generator set, electric control system, cable, vehicle-mounted water pump, vehicle-mounted lifting lighting, warning lights and sirens, reversing monitoring, working ladder, tool cabinet and so on. It is a mature type of vehicle, with the ministry of industry and information technology announcement catalogue, irs tax exemption catalogue, ministry of environmental protection announcement and "CCC" certificate, can be yellow card on the road.
Technical parameters
Control system| Vehicle type | HYZ5071XXH | Fluid pressure leg | Kaizhuoli electro-hydraulic leg, double leg linkage/single leg independent control |
| The total quality | 6800kg | Safety warning device | Long row of flashing lights (yellow/yellow) siren +2 small cylindrical warning lights |
| Overall dimensions | 6930×2050×3000mm | Astern monitoring equipment | Color LCD monitor, 7 - inch display |
| Emission standards | The V emissions | Interior lighting | Direct current lamps for each warehouse |
| Chassis models | QL1070A5KWY second class car chassis, double row seat | Safety grounding device | Special ground wire and ground anchor assembly |
| Work rate | 96KW | Fire safety installation | 2kg dry powder fire extinguisher |
| Fuel type | diesel | The job ladder | Extension ladder |
| Mute compartments body | Two silos (generator and pump silos) silent type, including desiccation system, ventilation system, heat insulation system, anti-skid floor; The net size of the interior body 4000×1800×1880mm； | Tool box | Underhanging chassis |
| The pump system | 4 submersible pumps with a total flow rate of 1200m3/h | ||
| Generating set | Cummins diesel generator set, 400V/230V cummins engine, Stanford generator, standard control panel, main power 80KW, standby power 87KW, including base tank, water jacket heater, starting battery, spare parts, etc. | Light submersible pump | Light and high speed submersible flood control pump, aluminum alloy pump body, stainless steel pump blade, flow 300m3/h, lift 10 meters, power 15KW, weight 35KG; |
| Into the wind system | Symmetrical multistage multichip sound absorption device | Frequency conversion control cabinet | One control and two frequency conversion control cabinet, modular design, weight less than 50KG, can be used for normal operation of power supply; When the pump works normally, the speed and flow of the pump can be adjusted continuously. ABB low voltage inverter and ABB leakage circuit breaker; |
| Exhaust system | Multi - level multi - piece radial exhaust duct | ||
| Exhaust system | Compound silencer | ||
| IP44, 380V/220V, including 4 output interfaces | Form a complete set of cable | Professional submersible cable is used. The cable with a length of 50 meters is equipped with a single pump. It is divided into two cables. | |
Car lift Lighting system | For night work to provide large area lighting, power 2*1000W electric, remote control, can rise and fall, can rotate, operation height 4.5m, effective lighting distance 60m; | Supporting the hose | The single pump is equipped with a drainage belt of 50 meters long, which is divided into two sections, each of which is 25 meters long. Quick connections are adopted between the drainage belt and another 4 floating bodies. |
