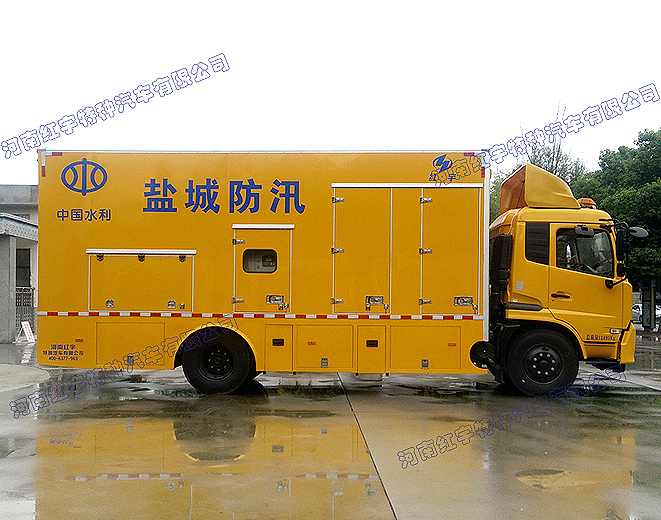

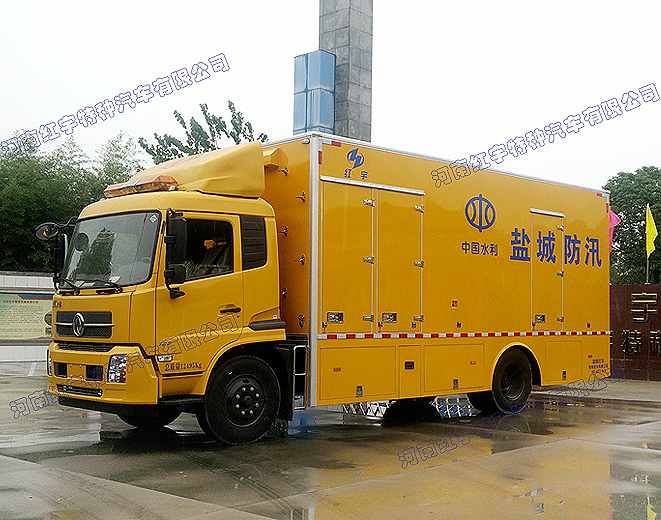

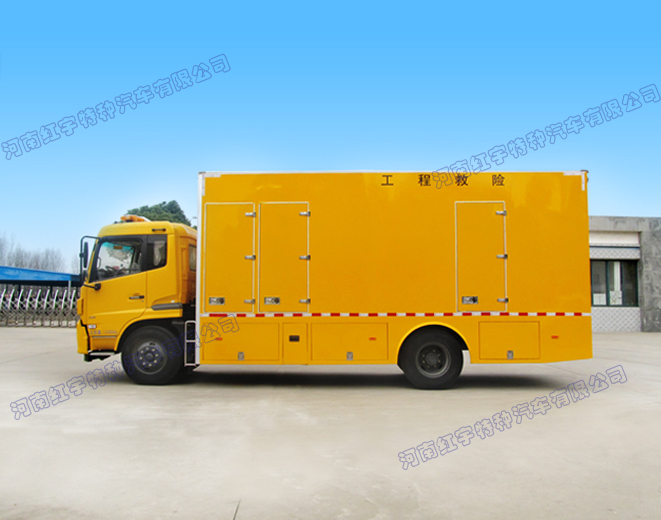

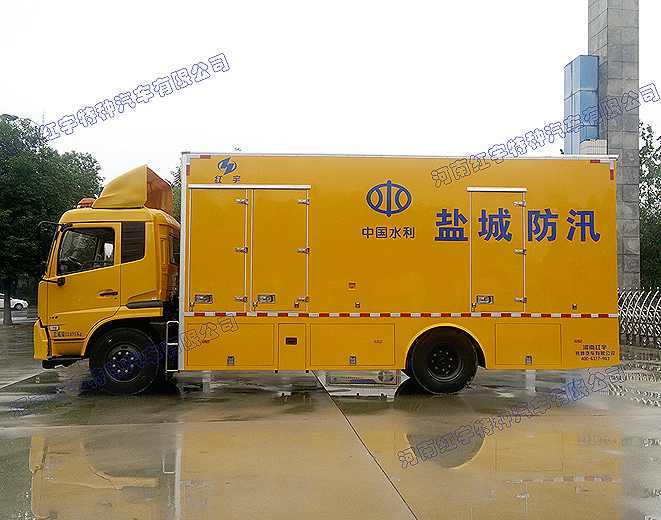

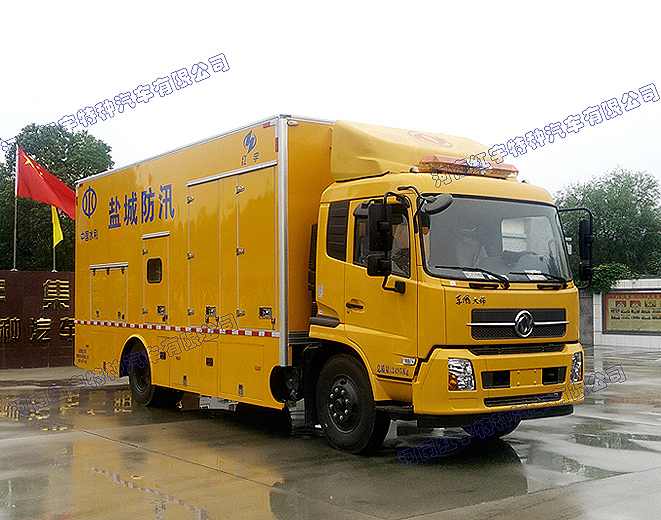

HYZ5120XXH emergency vehicles

Hongyuemergencyvehicleseriesisaspecialvehicledevelopedbyhenanhongyuspecialvehicleco.,ltd.

  • Product Details
  • Product use


    Hongyu emergency vehicle series is a special vehicle developed by henan hongyu special vehicle co., ltd. for the pipe network and road surface quick rescue and repair operations of water supply and drainage, municipal administration, heat, gas, electric power, airport, highway and other industries. In case of emergency, it can reach the site quickly, and most emergency repair operations, such as cutting, dismantling, drainage, pipe welding, etc. can be realized by using vehicle-mounted power supply and vehicle-mounted tools, which greatly improves the emergency response capacity and the efficiency of emergency repair. The car is mainly composed of dongfeng chassis, silent carriage, generator set, electric control system and special tools. It is a mature type of vehicle, with the ministry of industry and information technology announcement catalogue, irs tax exemption atlas, the ministry of environmental protection information public notice and "CCC" certificate, can be yellow card on the road.


    Technical reference number



    Vehicle typeHYZ5120XXHReversing monitorVisual reversing radar, 7-inch display screen, with 4 safety probes
    The total quality12495KgSafety grounding deviceSingle core 25mm2 length 10m grounding wire and special grounding bit
    Overall dimensions8845×2490×3690mmFire safety installation4kg dry powder fire extinguisher
    Emission standardsThe V emissionsThe job ladderUp and down vehicles
    Automobile chassisDongfeng tianjin DFL1120B21 chassis, reversible cab, cummins isd18050 engine, power 132KW, wheelbase 4700mm, with air conditioning, direction assist, flow guide cover, steel wire tire;Special tools
    Mute compartments bodyTwo-compartment silent cabinet with lifting cabinet and tool cabinet, including desiccation system, ventilation system, heat insulation system and anti-skid ground plate;The drainage systemWith multiple submersible pumps, the flow can reach 3200m3/h;
    Generating setDiesel generator sets of different powers are optional, with mains power floating charge, water jacket heater, 8-hour base oil tank, etc.Submersible water pumpLight and high speed submersible flood control pump, aluminum alloy pump body, stainless steel pump blade, stainless steel spindle, flow rate 400m3/h, head 10 meters, power 18.5kw, weight 35Kg;

    Car lift


    Lighting system

    Adopt electric and remote control control, can hide, tilt, lift and rotate omni-directional lighting, (metal halide lamp 2 x 1000W, working height over 5 meters, providing large area lighting for field night work;Control cabinet1 control 2 frequency conversion control cabinet, modular design, visual operation interface, weight less than 50Kg, in the normal operation of the pump, the pump speed and flow can be adjusted continuously; ABB low voltage inverter and ABB leakage circuit breaker are adopted.
    Control systemVehicle circuit centralized control, IP44 class protectionForm a complete set of cableProfessional submersible cable is used. The cable with a length of 50 meters is equipped with a single pump. It is divided into two cables. The cable is equipped with 150mm steel jacket;
    Hydraulic leg

    Single leg 8T, double leg linkage/single leg independent control,


    Wireless remote control and manual control;

    Supporting the hoseUsing professional hose, single pump with a length of 50 meters hose, divided into two sections, each section is 25 meters long, between the drainage belt using fast connector.
    Interior lightingDirect current or alternating current lamps in each cabinForm a complete set of floating bodyIntegral forming, bearing not less than 60kg.


    Note: optional tools can be added or subtracted according to your actual needs; The interior tools can be customized according to the actual needs of users.
