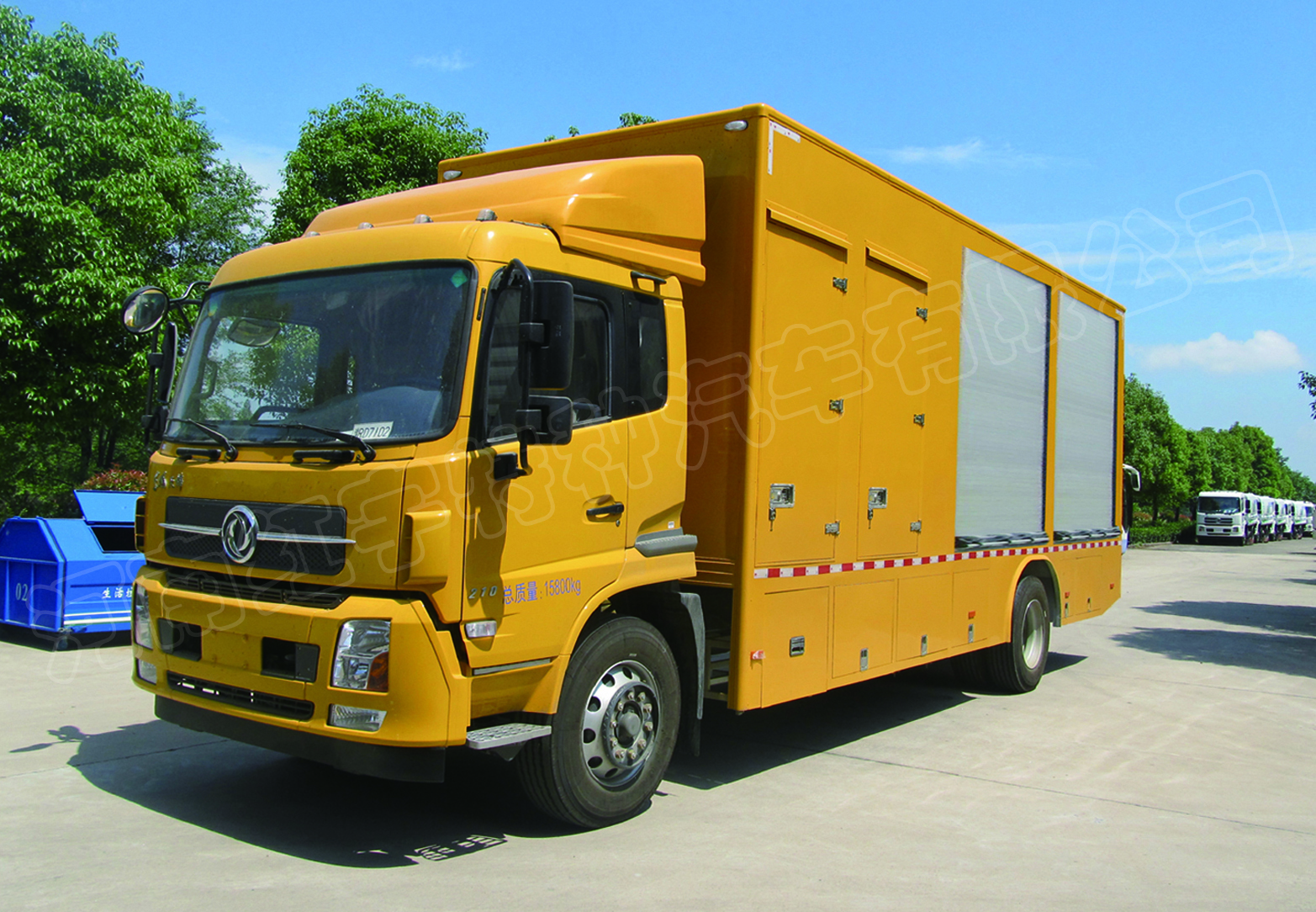

Hongyu emergency drainage vehicle series is a special vehicle developed by henan hongyu special vehicle co., ltd. for drainage operations in urban flood control, municipal drainage, lake drainage and other industries. In case of emergency, it can quickly arrive at the site, and use the vehicle-mounted power supply, vehicle-mounted water pump (dump pump, submersible pump, etc.) to achieve large flow (flow rate of 600-3200m3 /h can be combined) drainage and drainage operations, greatly improving the emergency response capacity, improve work efficiency. The car is mainly composed of class ii automobile chassis, muffler carriage, generator set, electric control system, cable, vehicle-mounted water pump, vehicle-mounted lifting lighting, warning lights and sirens, reversing monitoring, working ladder, tool cabinet and so on. It is a mature type of vehicle, with the ministry of industry and information technology announcement catalogue, irs tax exemption catalogue, ministry of environmental protection announcement and "CCC" certificate, can be yellow card on the road.
Technical parameters
| Vehicle type | HYZ5160XXH | Cable and capstan | Electric, positive and negative, equipped with 30m long 3 x 50mm2+1 x 25mm2 fire retardant copper cable; |
| The total quality | 15800Kg | Electro-hydraulic leg | Two legs linkage/single leg independent control, wireless remote control and manual control; |
| Overall dimensions | 9995×2495×3850mm | External power supply unit | It is equipped with four external power sockets to facilitate power collection during construction (220V, 16A two, 380V, 25A two); |
| Emission standards | The V emissions | Interior lighting | Dc or ac lighting in each cabin, emergency lights |
| Chassis models | DFL5160XXYBX2V class ii vehicle chassis, row half | Safety warning device | Long row engineering warning lights are installed on the top of cab, with loudspeakers and warning lights; |
power | 132/155KW | Safety grounding device | Single core 25mm2 length 10m grounding wire and special grounding bit |
| Fuel type | diesel | Fire safety device | 4Kg dry powder fire extinguisher |
| Silence down the noise chamber | Environmental protection, energy saving, flame retardant, silent carriage | Working ladder, working box | For loading and unloading, hanging down |
| Diesel generating set | Optional 100-200kw diesel power generator set, with 6-8 hours base fuel tank, water jacket heater, starting battery, etc.; | The drainage system | The flow rate can reach 600-3200m3 /h in combination |
| Self-priming pump | Large flow and strong self-priming vacuum auxiliary self-priming pump, flow 600-1500m3 /h, head 10-15m, suction range 7-9m, motor power 55-90kw; | ||
| Into the wind system | Symmetrical, bidirectional, multistage and multichip sound absorption device | Inlet pipe | 1 water inlet, diameter 250mm, 5m/piece, 4 pieces, 20 meters in total; Imported light resin pumping pipe, light weight, easy to take, quick eastern joint, good sealing effect, and with a pumping filter; |
| Exhaust system | Multi - stage multi - piece radial exhaust duct | ||
| Exhaust system | Multistage compound silencer | Outlet pipe | 2 outlets, diameter 200mm, each outlet 6 rolls, 25 meters/roll, a total of 12 rolls, wear resistance, pressure resistance 10Kg hose, aluminum alloy quick joint; |
| Control system | IP44 class protection | ||
Car lift Lighting system | Adopt electric and remote control control, can hide, tilt, lift and rotate omni-directional lighting, halogen lamp 2*1000W, working height is more than 4.5m, providing large area lighting for field night work; | Submersible pump | Light and high speed submersible flood control pump, aluminum alloy pump body, stainless steel pump blade, flow 300m3/h, lift 10 meters, power 15KW, weight 35KG; |
| Form a complete set of cable | Professional submersible cable is used. The cable with a length of 50 meters is equipped with a single pump, which is divided into two cables. Quick connector is adopted between the cables. | Frequency conversion control cabinet | One control and two frequency conversion control cabinet, modular design, weight less than 50KG, can be used for normal operation of power supply; When the pump works normally, the speed and flow of the pump can be adjusted continuously. ABB low voltage inverter and ABB leakage circuit breaker are adopted. |
| Matching jacket | The single pump is equipped with a drainage belt of 50 meters long, which is divided into two sections, each of which is 25 meters long. Two more floats. |
