Therescuevehicleismainlycomposedofacarrierchassis,arescuecapsule,rescueequipmentandautilitycabinet.
The rescue vehicle is mainly composed of a carrier chassis, a rescue capsule, rescue equipment and a utility cabinet. Considering the actual use of rescue vehicles, the internal equipment should be reasonably arranged on the basis of meeting the overall design requirements to ensure that the rescue vehicles are convenient and reliable in use and easy in maintenance.
Rescue vehicle working temperature in the range of 40 ℃ ~ + 55 ℃, in order to ensure that the rescue vehicle electronic equipment and reliable work, improve the system of environmental adaptation ability, must rescue the car for insulation design and heating and cooling measures, to ensure that the system safely and efficiently complete the rescue mission. The rescue vehicle USES air conditioning cooling and electric heater for heating to realize the function of temperature control.
Rescue vehicle equipped with a power supply, communication, air conditioning and other equipment, especially in the key equipment selection and equipped with a number of aspects, adopted double "insurance" and double "redundant" measures, not only greatly improving the efficiency of the system equipment, and make the mission equipment and working environment to a certain extent, have self support capability. In the future emergency rescue work, in the case of possible power failure and inconvenient service support, we can guarantee ourselves to complete the rescue task.

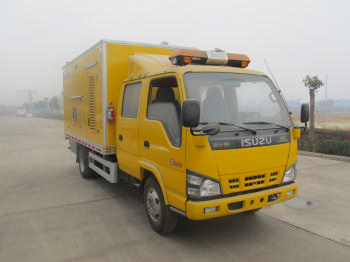

Vehicle name: | Emergency lighting vehicle | ||
Vehicle class: | Special for | ||
Vehicle model: | HYZ5070XZM | ||
Exempted from inspection: | no | ||
Fuel: | no | ||
Shall be exempted from: | yes | ||
Environmental protection: | no | ||
Notice batch: | n7(237) | Directory number: | (十六)42 |
Chinese brand: | Hongyu brand | Manufacturer: | Henan hongyu special vehicle co. LTD |
Engine model: | 4KH1-TC | Engine power: | 96 |
Engine displacement: | 2999 | Engine manufacturer: | Qingling automobile co. LTD |
Engine trademark: | Fuel type: | diesel | |
Dimensions (length/width/height) : | 6780×2050×3000 | Trunk (length/width/height) : | ×× |
Total mass (Kg) : | 6750 | Quality: | 0 |
Prepared mass (kg) : | 5945 | Rated mass (kg) : | 480 |
Trailer weight (kg) : | Semi-mounted saddle (kg) : | ||
Rated passenger capacity (person) : | Front passenger (person) : | 2+3 | |
Cab (person) : | Date of issue: | 20120607 | |
Angle of approach/Angle of departure: | 24/12 | Front/rear suspension: | 1015/1950 |
The wheelbase (mm) : | 3815 | Axial load: | 2300/4450 |
Shaft: | 2 | Maximum speed (km/h) : | 90 |
Fuel consumption: | Number of spring plates: | 8/6+5 | |
Tyre number: | 6 | Tire specification: | 7.50-15,7.50R15,7.00-16,7.00R16 |
Before the wheel track: | 1504 | After the wheel track: | 1425 |
Brake front: | After the brake: | ||
Before operation: | After the system operation: | ||
Steering form: | The steering wheel | Starting mode: | |
Driving type: | According to standards: | ||
Chassis standards: | GB17691-2005(國(guó)Ⅲ) | ||
Identification code: | LWLDARHH××××××××× | ||
Other: | Can be equipped with different power and manufacturers of generator sets. And hydraulic, power tools, the top can not be opened. The rear lower protection is connected by bolts. The rear lower protection is welded. The section of the rear lower protection is u-shaped, with a size of 100mm 40mm and a height of 400mm from the ground. | ||
