1,sprinklerequippedwithroundheadnozzleorducknozzle,Acylindricalsprinklerorshowerheadnozzle

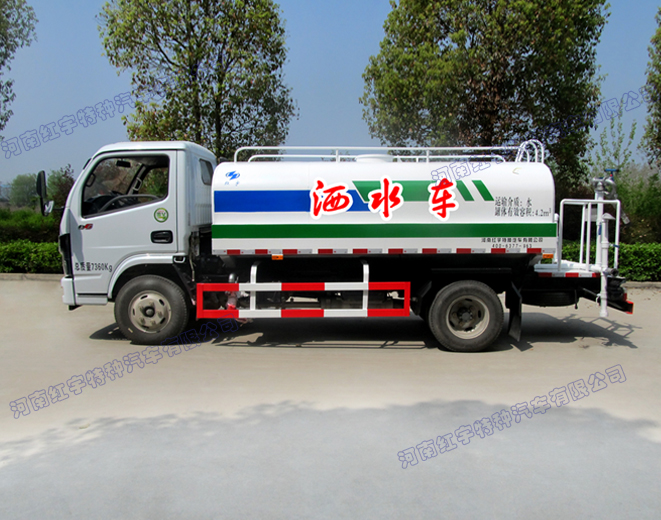

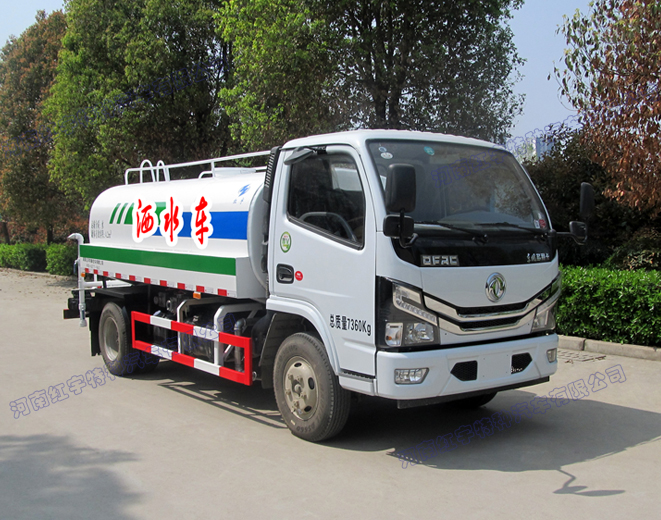

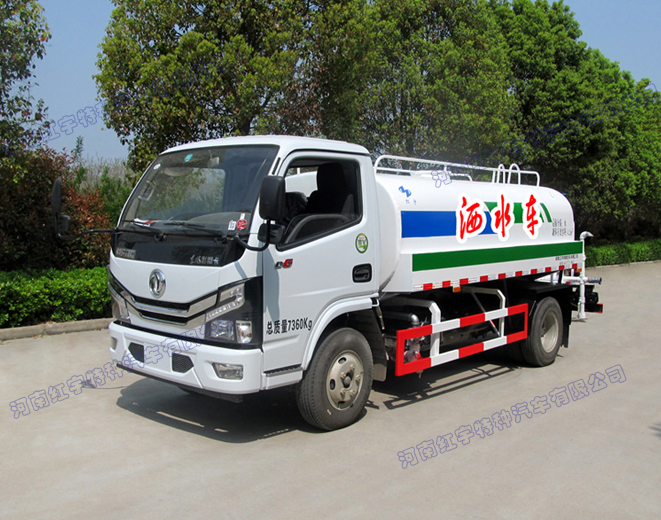

Hongyu HYZ5070GSS sprinkler is suitable for all kinds of road surface flushing and spraying.
Trees, green belt, lawn greening, roads, factories and mines construction construction, high - altitude building irrigation.
By the two types of chassis, anti-rust tank body, force extractor, drive shaft,
Special self-priming sprinkler pump, pipe network, spray outlet, working platform and other institutions.
Also known as sprinkler, multi-functional sprinkler, landscaping sprinkler, water tanker, water tanker.
Product features
1, sprinkler equipped with round head nozzle or duck nozzle,
A cylindrical sprinkler or showerhead nozzle, usually used to flush streets,
Play the role of dust removal and cooling,
The injector can be changed by adjusting the thread of the nozzle
Spray direction and Angle;
2. There is a working platform at the rear of the vehicle.
Equipped with anti-aircraft water cannon for landscaping and emergency fire control in urban and rural areas;
3. The vehicle is equipped with a lotus shower head on the side.
Can spray irrigate road green belt or garden afforest plant;
4. All sprinklers have the function of transporting water at the same time.
Sprinkler pump can play a suction and pressure drainage function,
It can also be directly drained by the water tank;
5, sprinkler can also be used as spray car,
However, the users of professional spraying vehicles please inform our company, in order to carry out professional treatment such as spraying anticorrosion;
6. The sprinklers produced by the company are green multi-function vehicles to meet the different requirements of different users.
And can be installed with all kinds of accessories, such as haze air cannon, pneumatic valve, GPS, universal nozzle, electromagnetic valve, visual operating system, external power, such as drug plate.
| Vehicle type | HYZ5070GSS | The manufacturer | Henan hongyu special vehicle co. LTD |
| Chassis models | EQ1070SJ3BDF | The manufacturer | Dongfeng motor co. LTD |
| Engine type | CY4BK551 | Engine manufacturer | Dongfeng chaoyang chaochai power co. LTD |
| Engine capacity | 3707 | Engine power (Kw) | 75 |
| Dimensions (length/width/height) | 6140,5990×1980×2350 | Fuel type | diesel |
| Total mass (Kg) | 7360 | Prepared mass (kg) | 3210 |
| Rated load weight (kg) | 4020 | Front suspension rear suspension (mm) | 1040/1792,1040/1642 |
| Axial load (kg) | 2640/4720 | Wheelbase (mm) | 3308 |
| Maximum sprinkler width (m) | 14 | Sprinkler range (m) | 25 |
| Tank effective volume (m3) | 4.2 | Maximum speed (km/h) | 99 |
| Number of tires | 6 | Tire size | 7.00R16 |
| To form | The steering wheel | Emission basis standard | GB3847-2005，GB17691-2005國(guó)V |
