The outside surface of the car shall be smooth and smooth without obvious defects.
The font, size, position and color of the logo on the outside surface of the car are consistent with the design requirements in the drawings.
The thickness of surface paint shall not be less than 110 m, and the thickness of interior paint shall not be less than 220 m.
Reflective signs shall be uniformly pasted with a size of 300 mm and an interval of 80-100 mm.
Hinge, door buckle position is correct, visual no skew, fastening in place;
Body lifting lug welding firm, the Angle is correct, arm opening and closing smoothly;
Opening Angle 90 ° or less, after fastening, should be properly sealed;
2, the two sides of the door open flexible, side door frame bending weld should be flat, polished after coated with anti-rust paint;
The inside and outside surface of the car is clean, the inside and outside skin is smooth and smooth, the color is consistent, without obvious defects;
The roller is well lubricated and can rotate flexibly without sliding or sticking.
The welds are firmly welded with smooth welds without obvious defects;
Correct position of trademark spray words;
With the vehicle arm traction on the car, there shall be no stagnation, smooth movement;
The front of the carriage shall not collide with the arm;
When loading or unloading, hook with self-locking function, decoupling is convenient, good sealing;
Unloading, the car body tilt Angle is not less than 45 degrees.

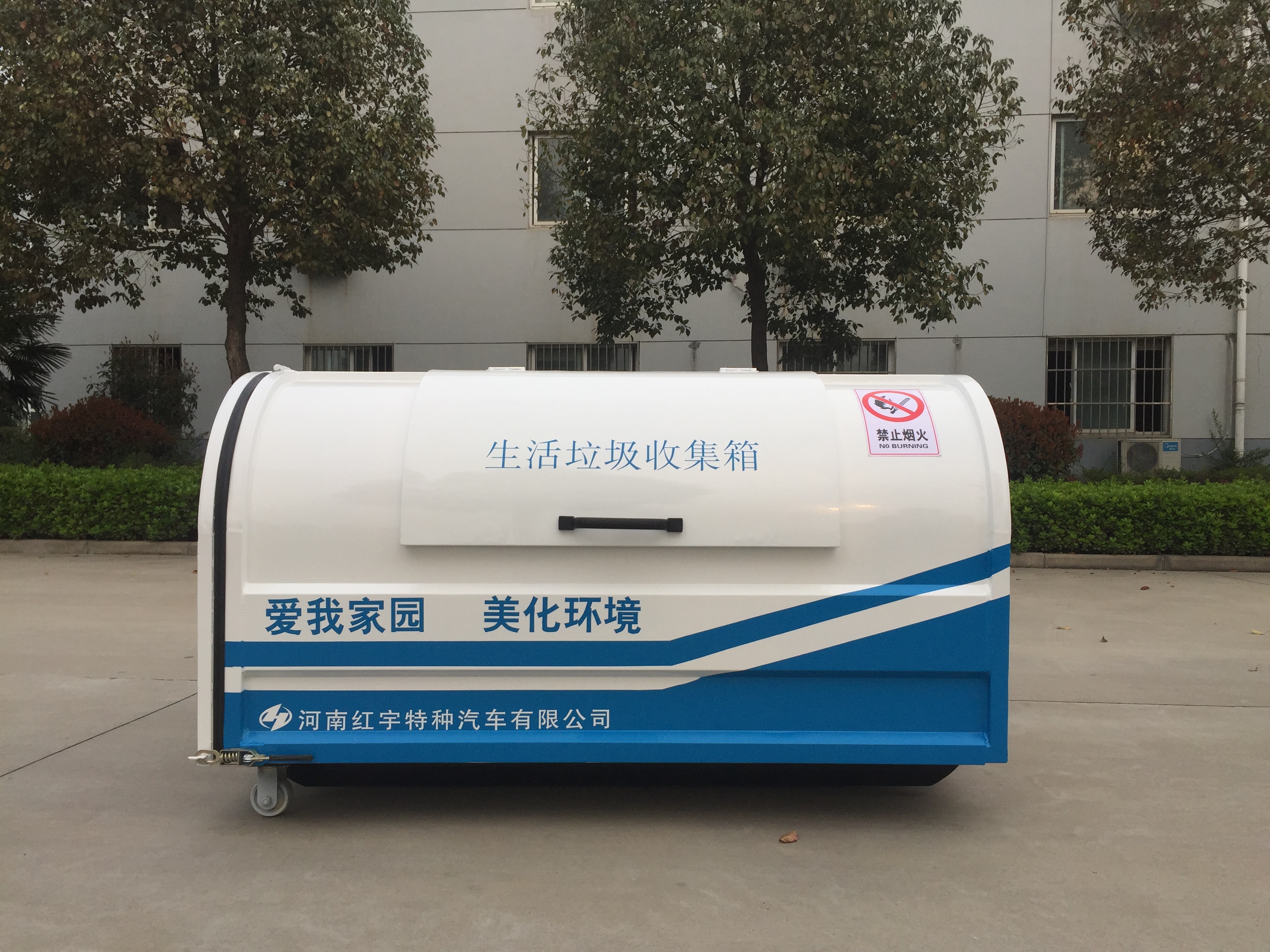

Box size: 1865 * 1475 * 1120
Body material :Q235
Box body plate material thickness: 3mm
Box volume: 2.5 cubic meters
